 | - | Bottom of ground board before any changes. |

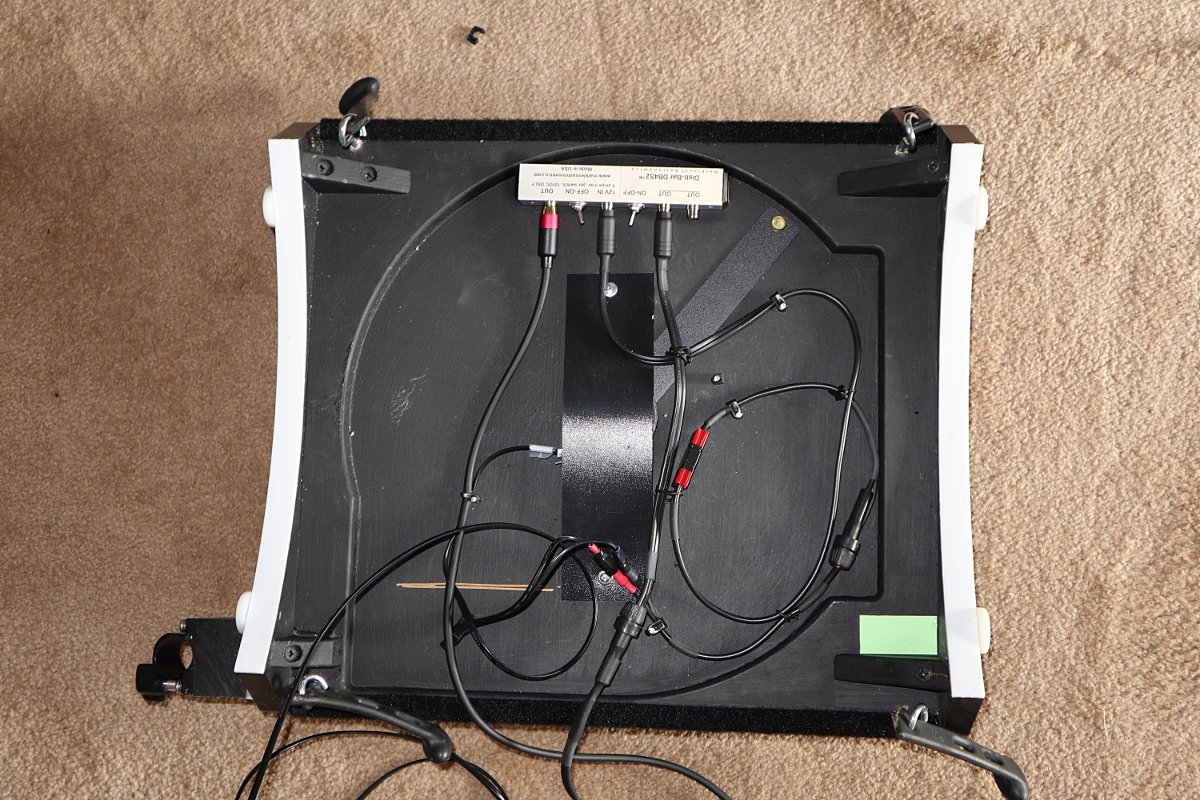

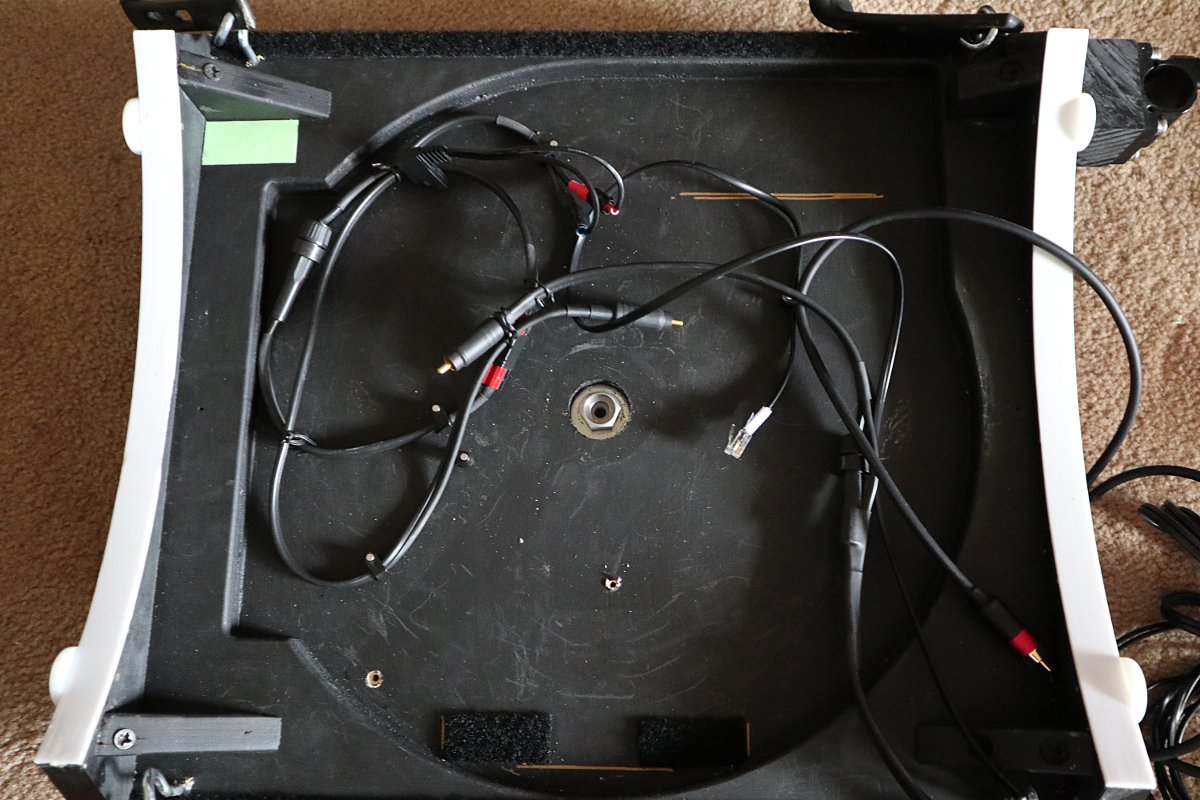

 | - | Inside of rocker box before any changes. |
 | - | Original pivot bolt and metal washer. |

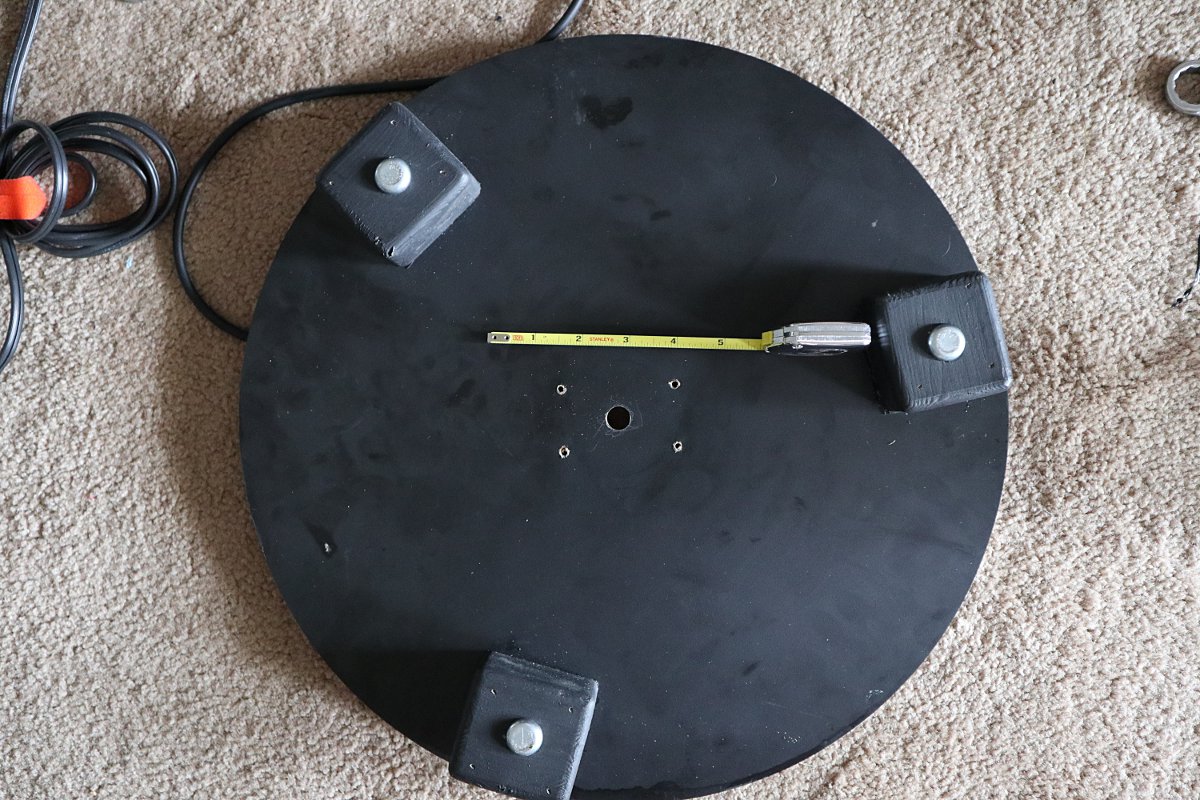

 | - | Bottom of ground board with original pivot bolt and plate removed. Original pivot bolt hole is 1/2" diameter. |

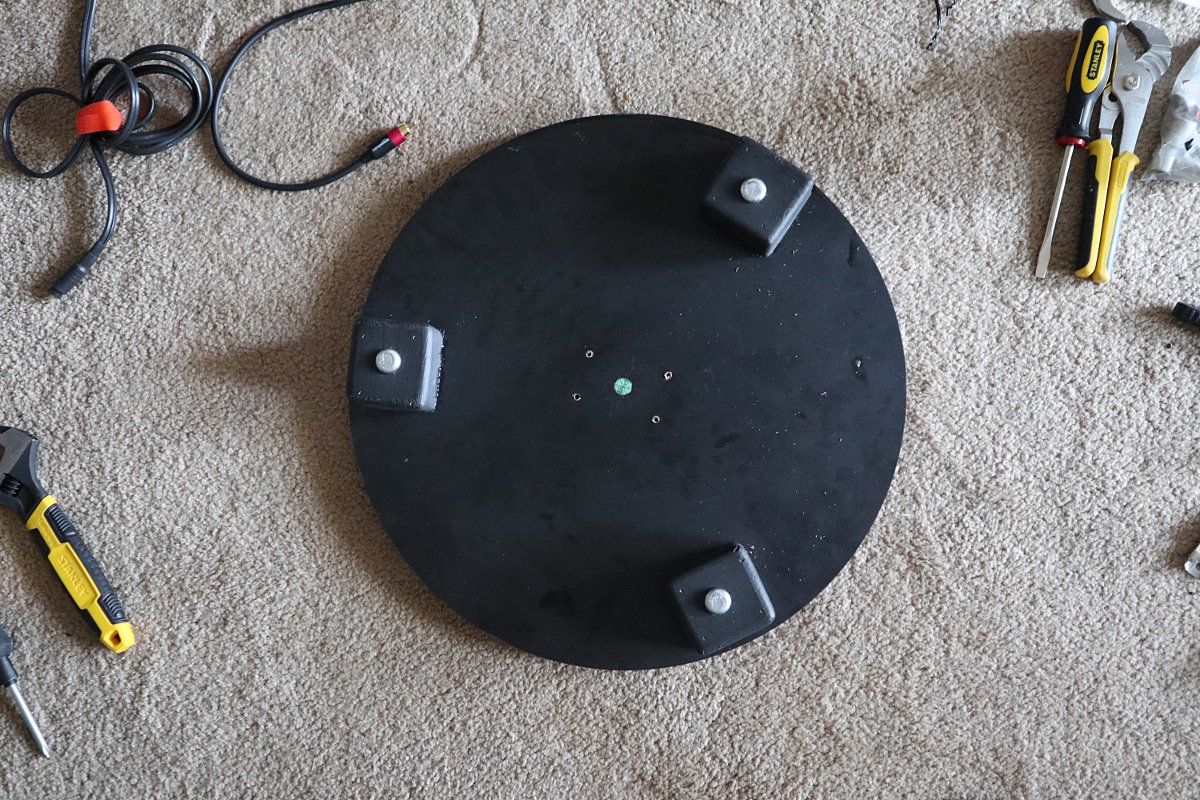

 | - | Original pivot bolt hole plugged with a 1/2" diameter dowel and center marked. |

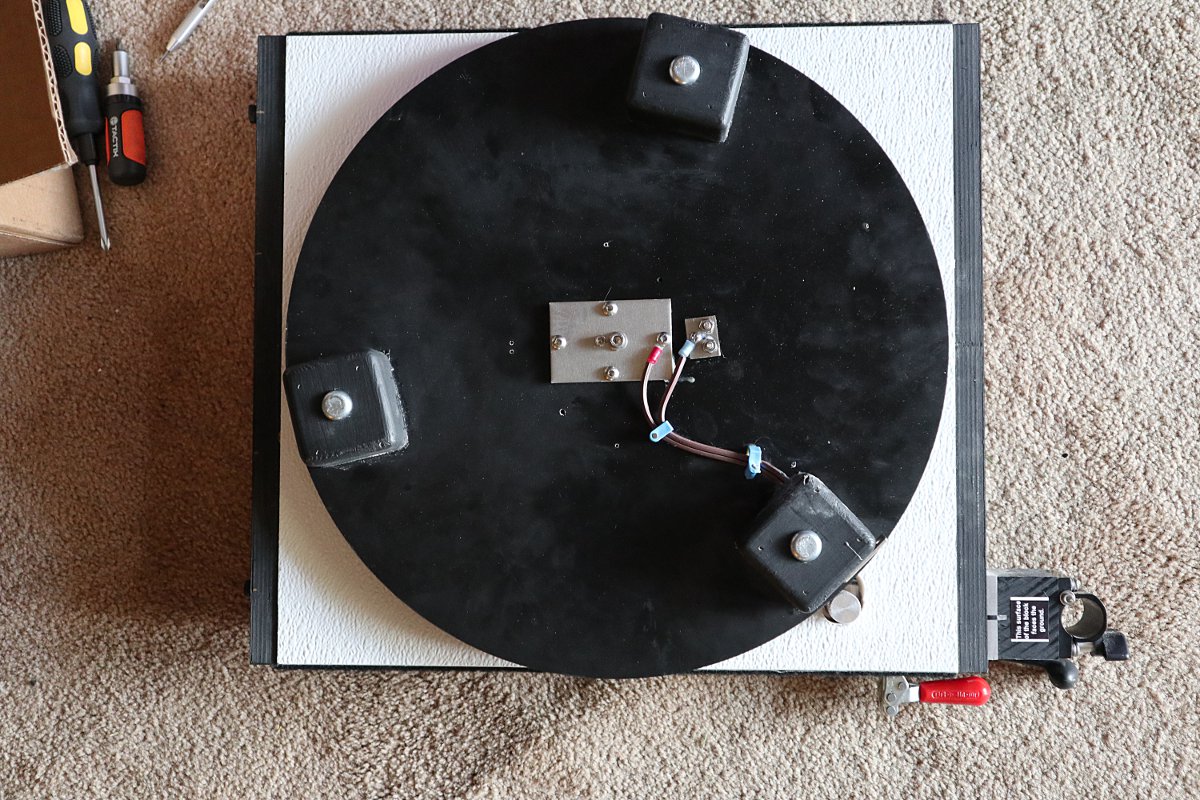

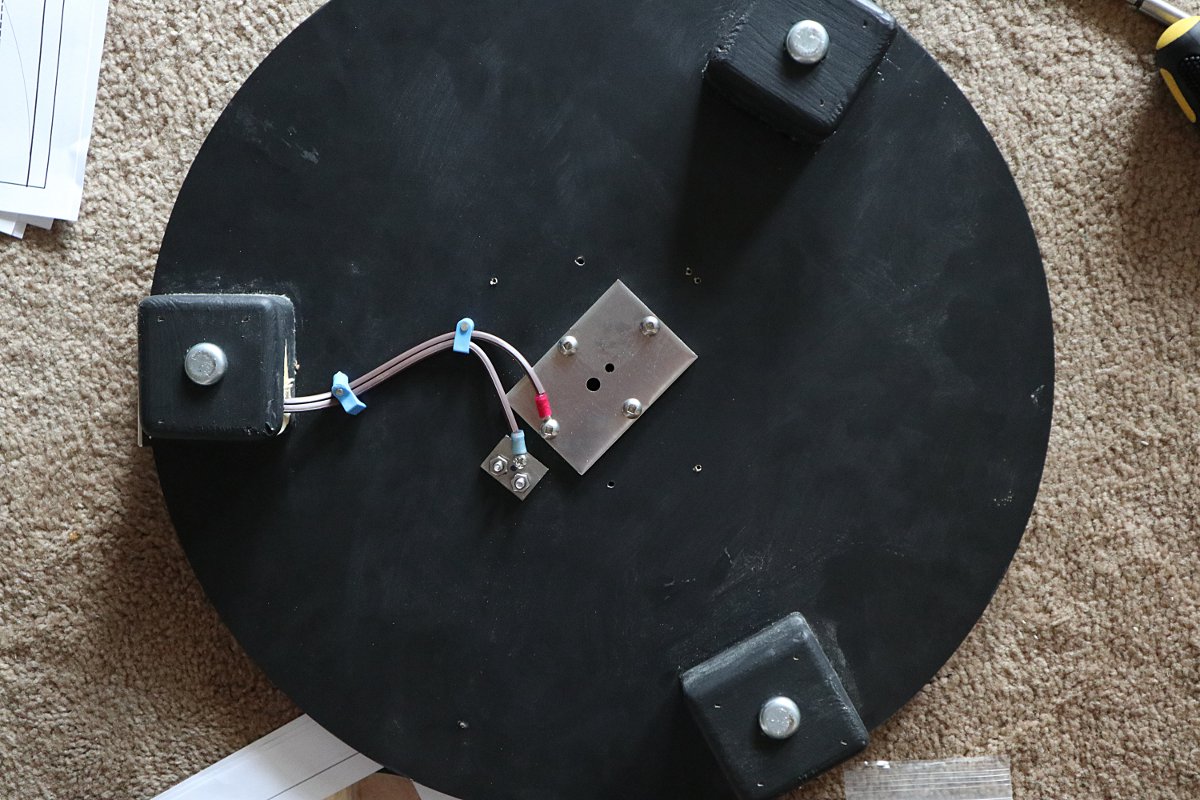

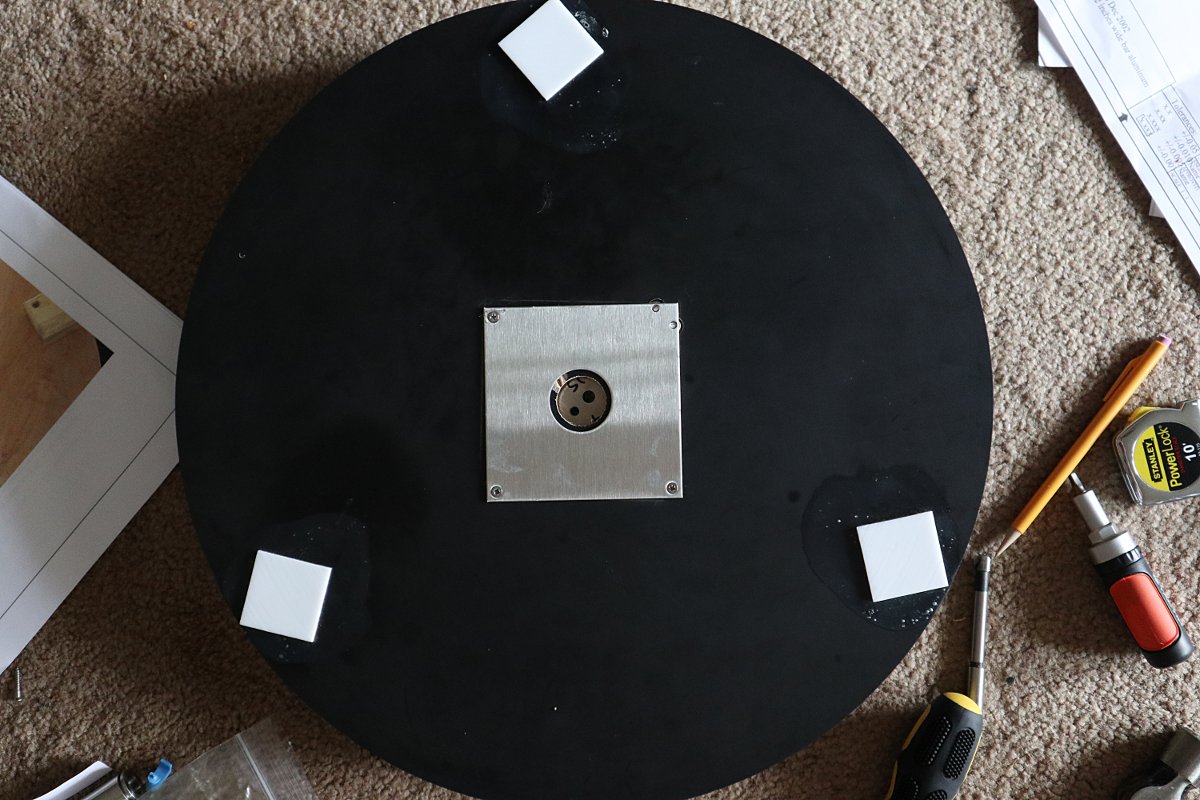

 | - | Bottom of ground board with new pivot post plate and wiring to power socket in ground board foot. |
 | - | Contact plate installed on the top of the ground board. |
 | - | Top of rocker with original pivot bolt removed. Original teflon bearing removed and replaced with one that has a groove in it for the altitude cable. |

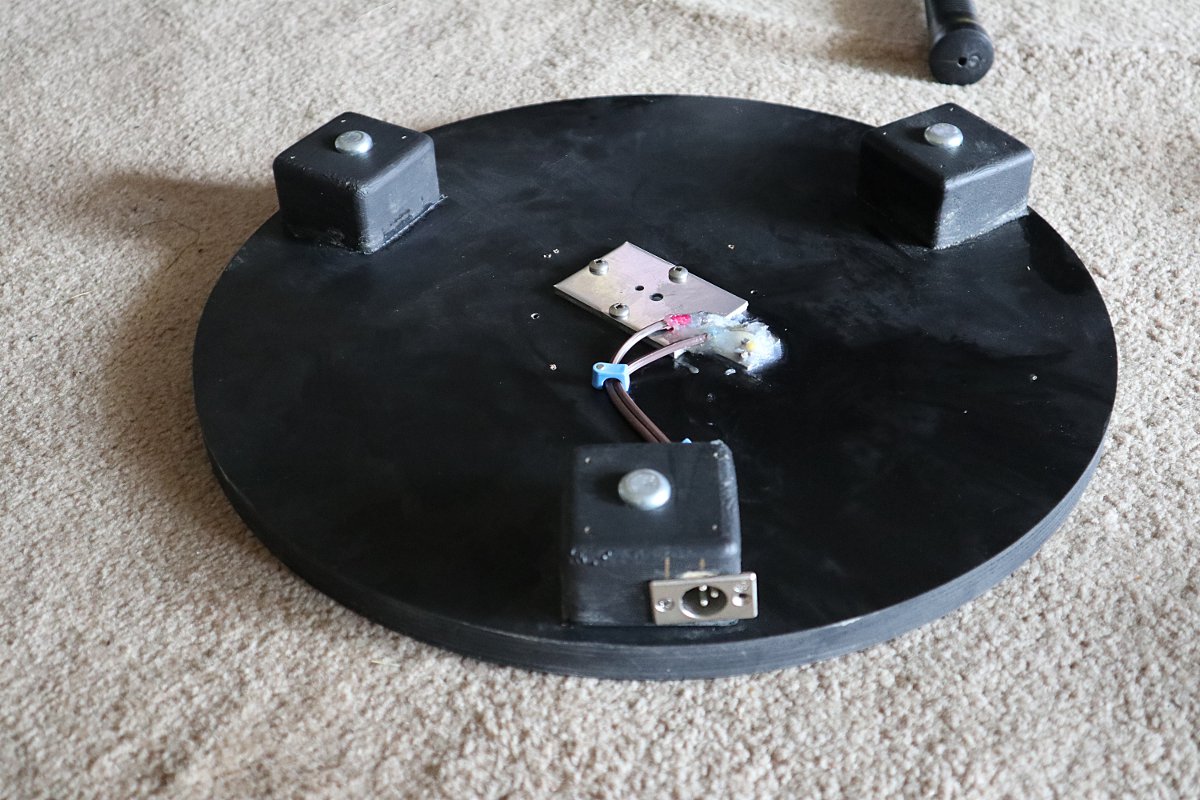

 | - | Shows the power socket installed in the foot of the ground board. |

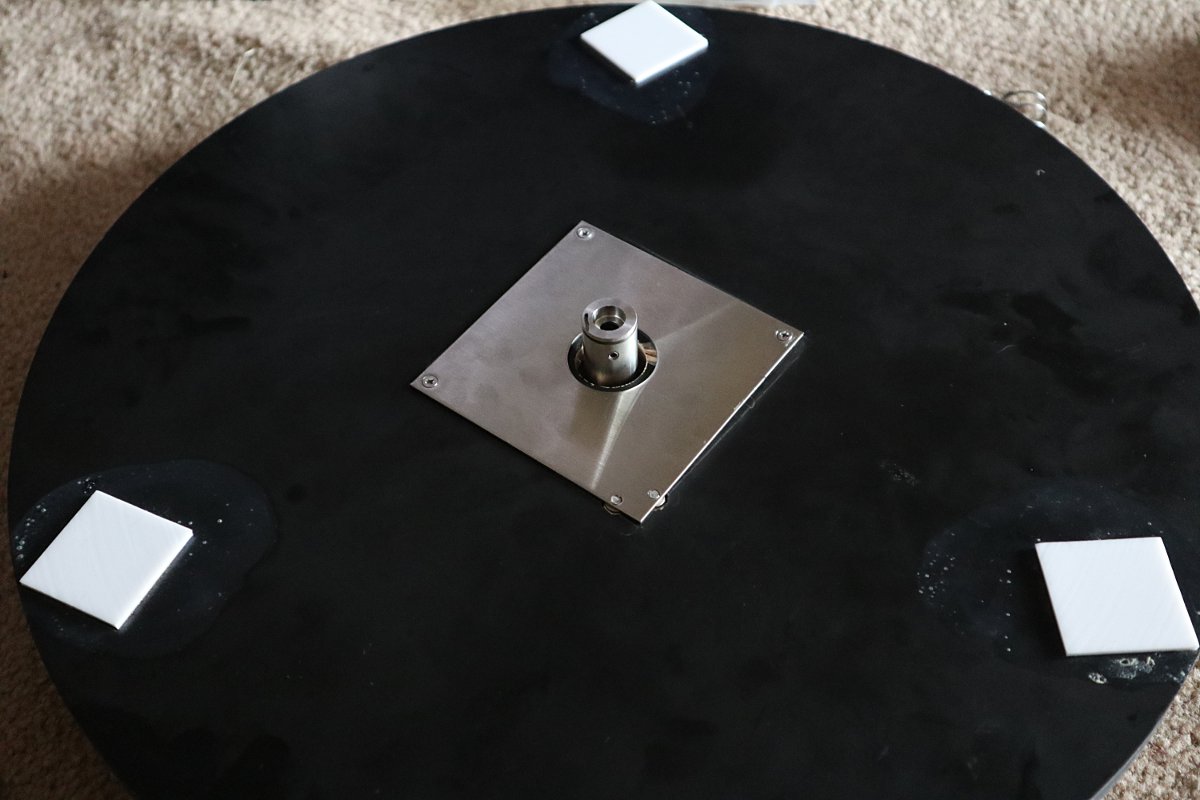

 | - | New pivot post installed in the ground board. |

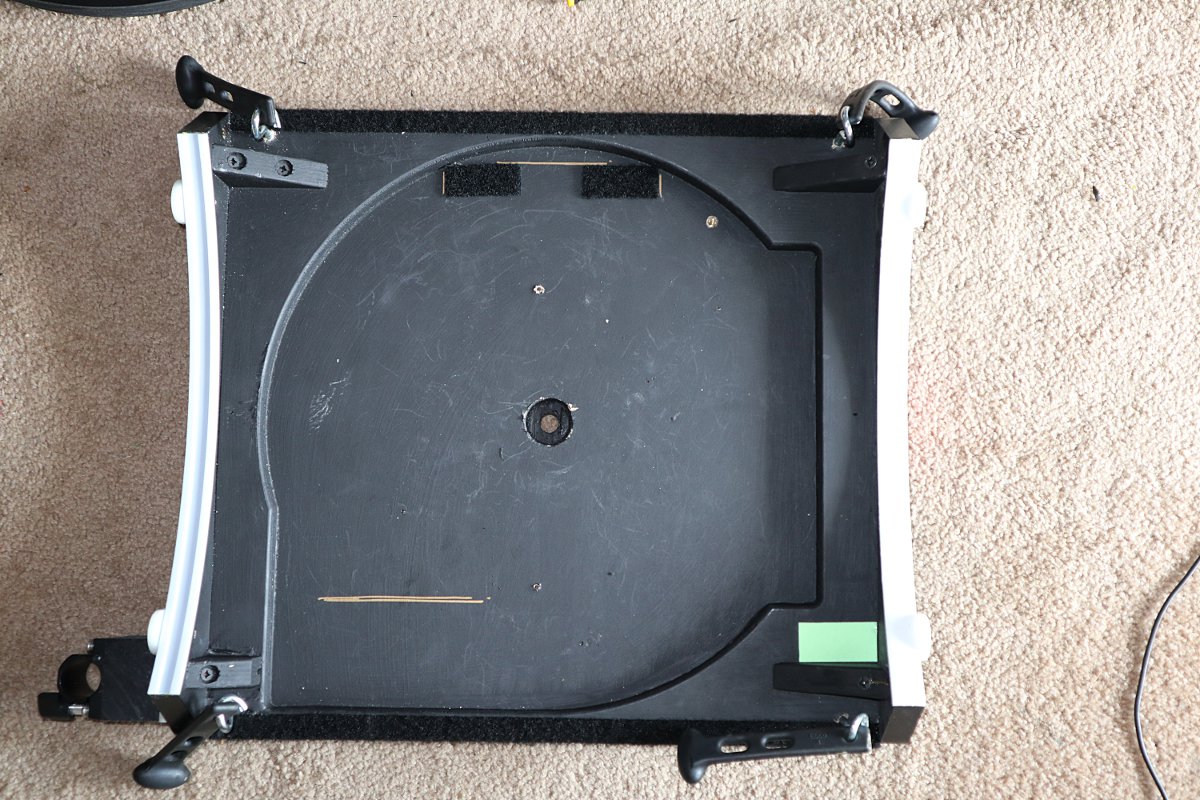

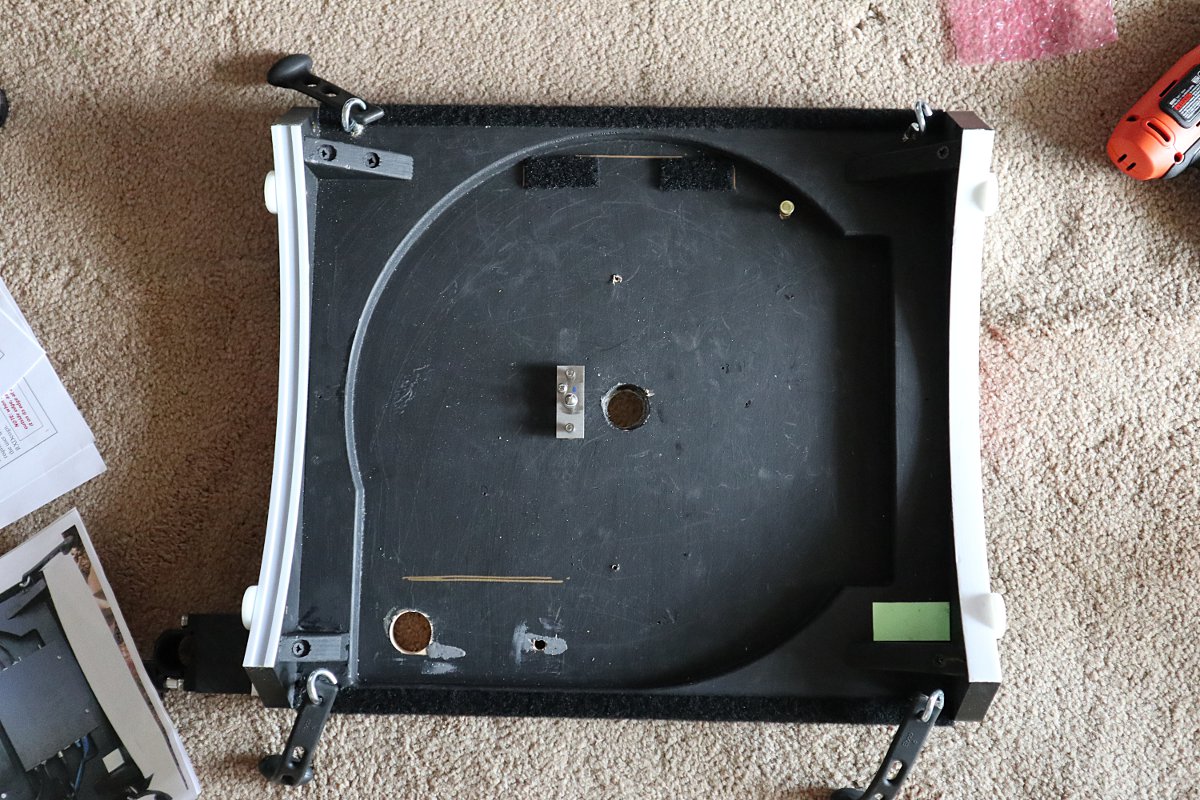

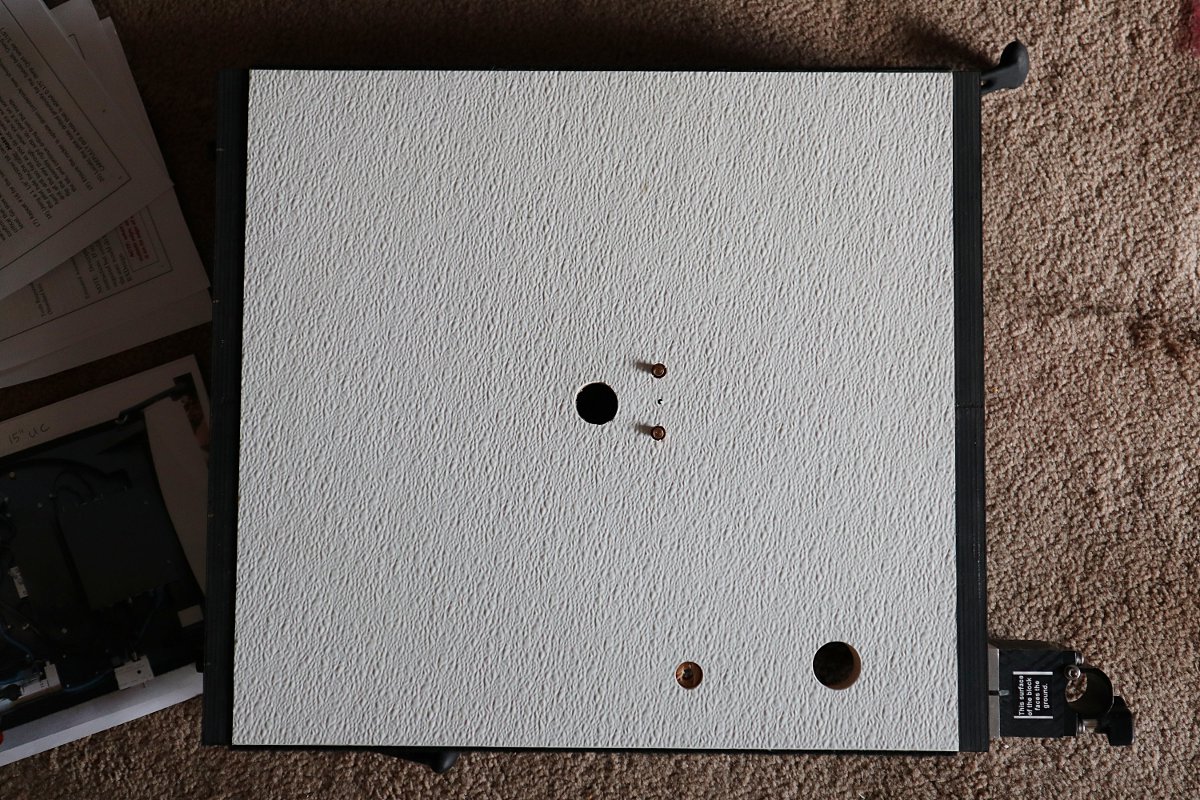

 | - | New holes in rocker for pivot post and azimuth motor assembly/roller. |
 | - | Holes in rocker as seen from the bottom. Azimuth roller hole had to be enlarged to allow it to disengage further from the edge of the ground board. |

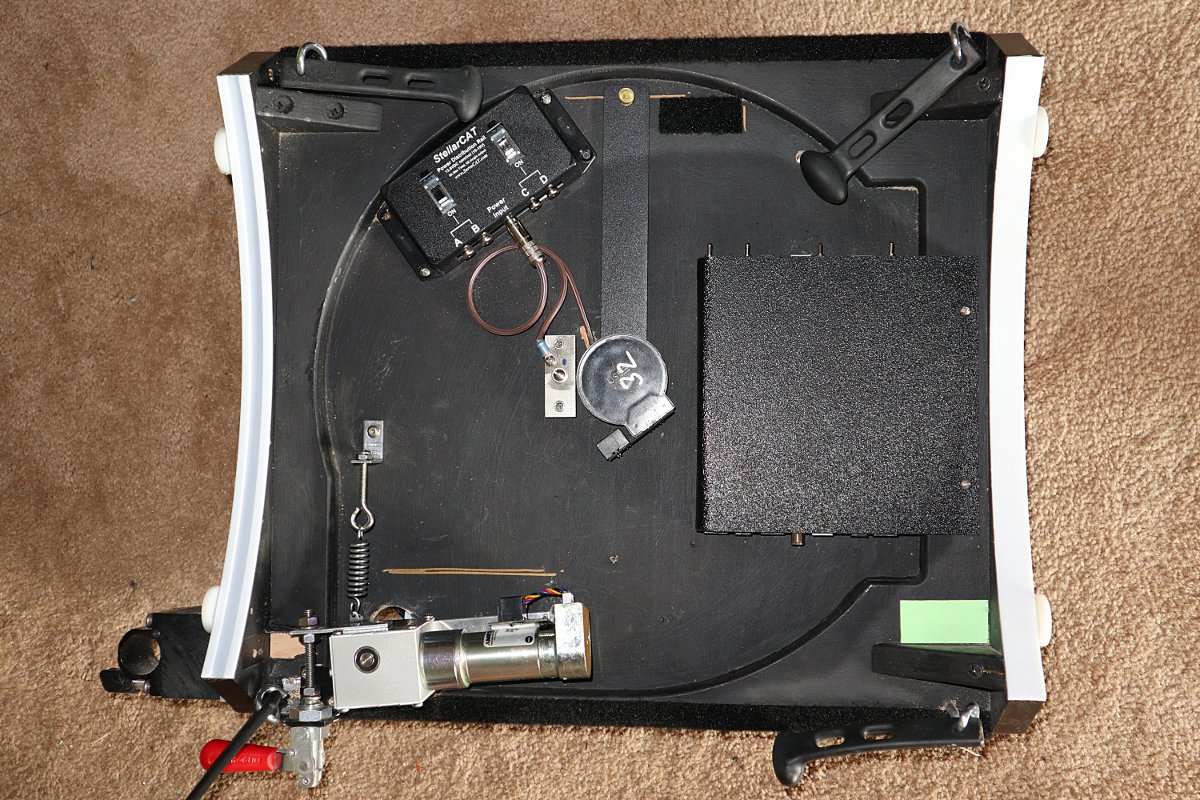

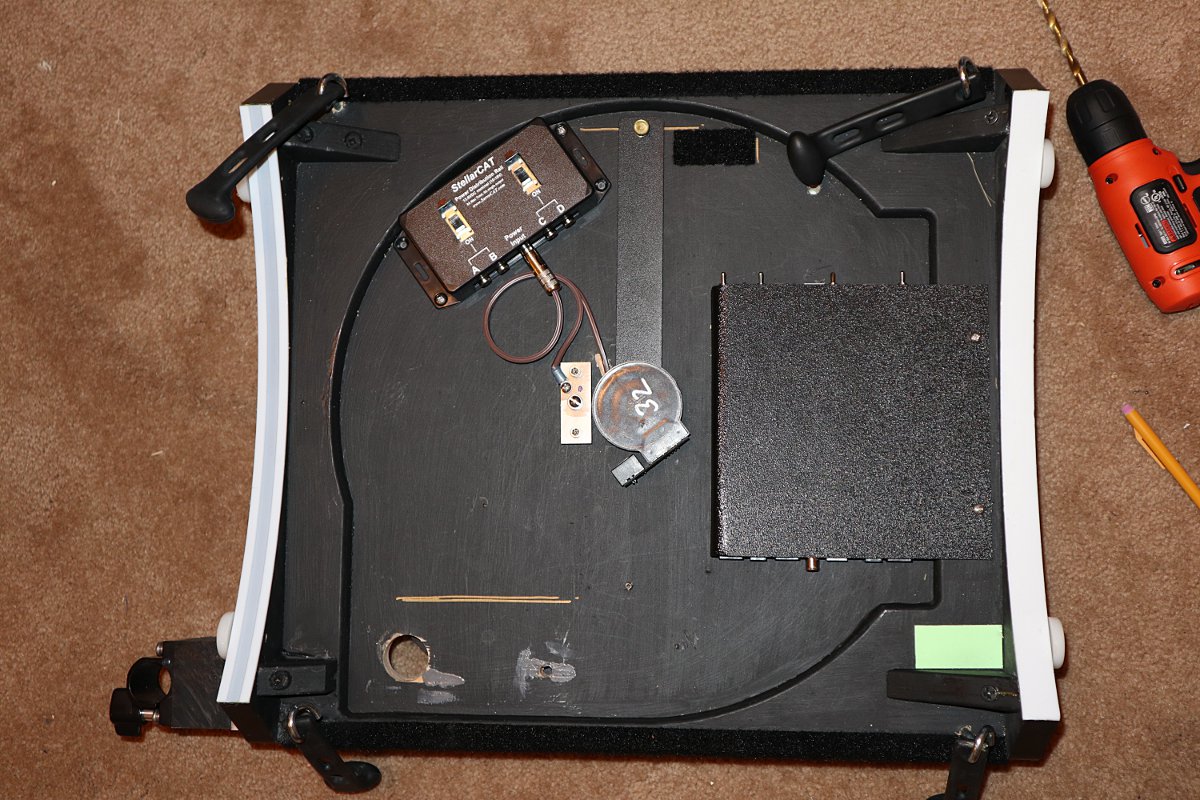

 | - | Power distribution rail, Servocat controller board, and reinstalled azimuth encoder. |

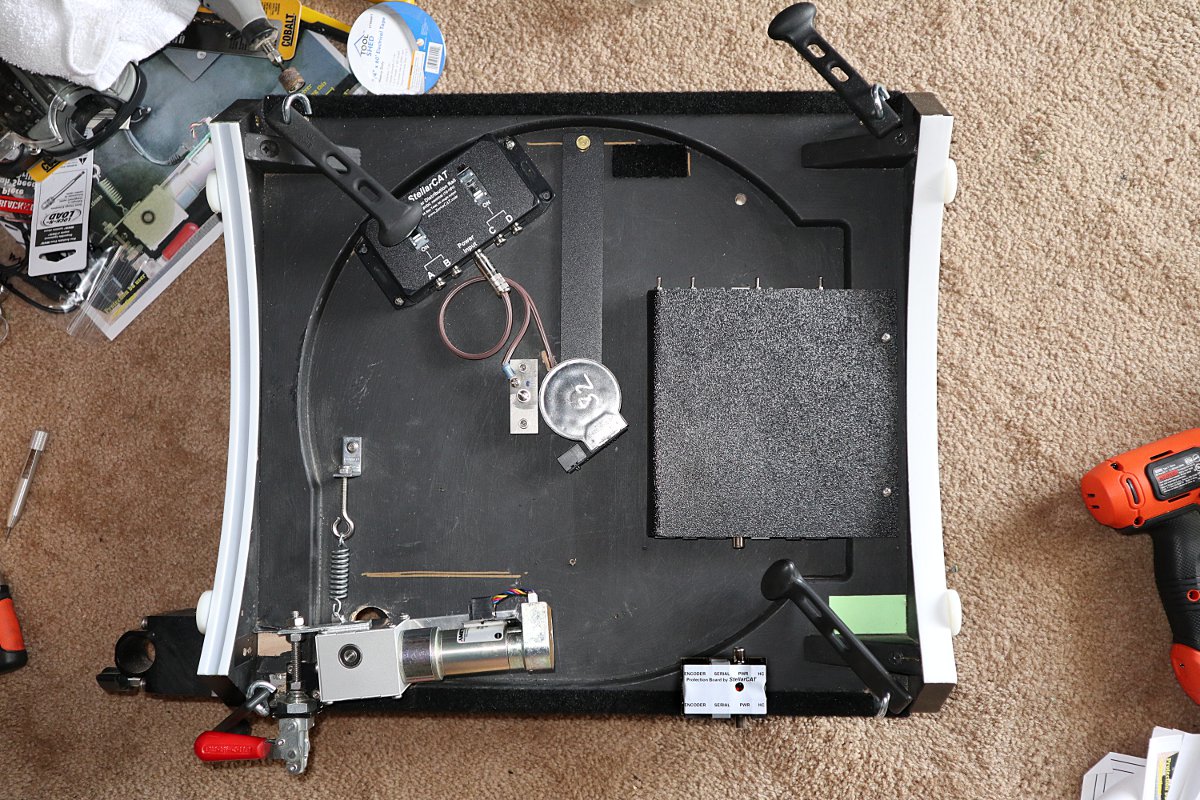

 | - | Azimuth motor assembly installed. |
 | - | Ground board reattached to rocker. |
 | - | Protection board installed at front of rocker. |

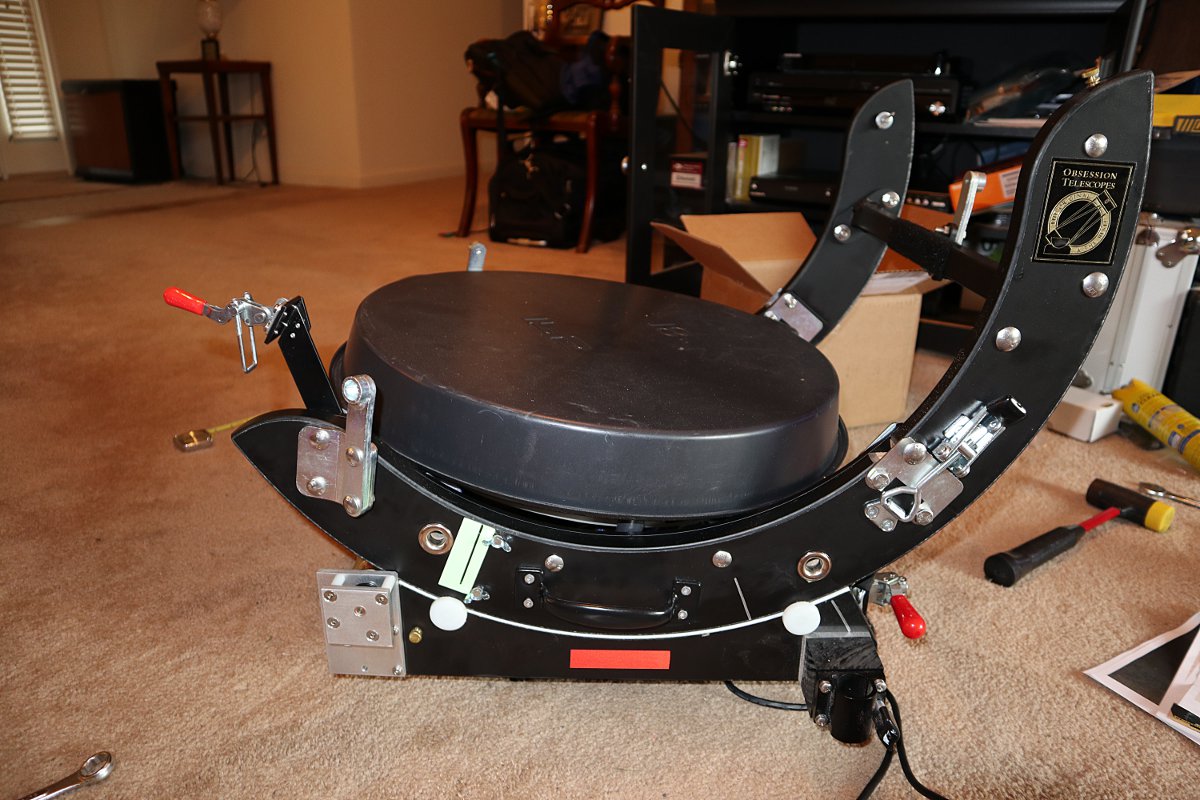

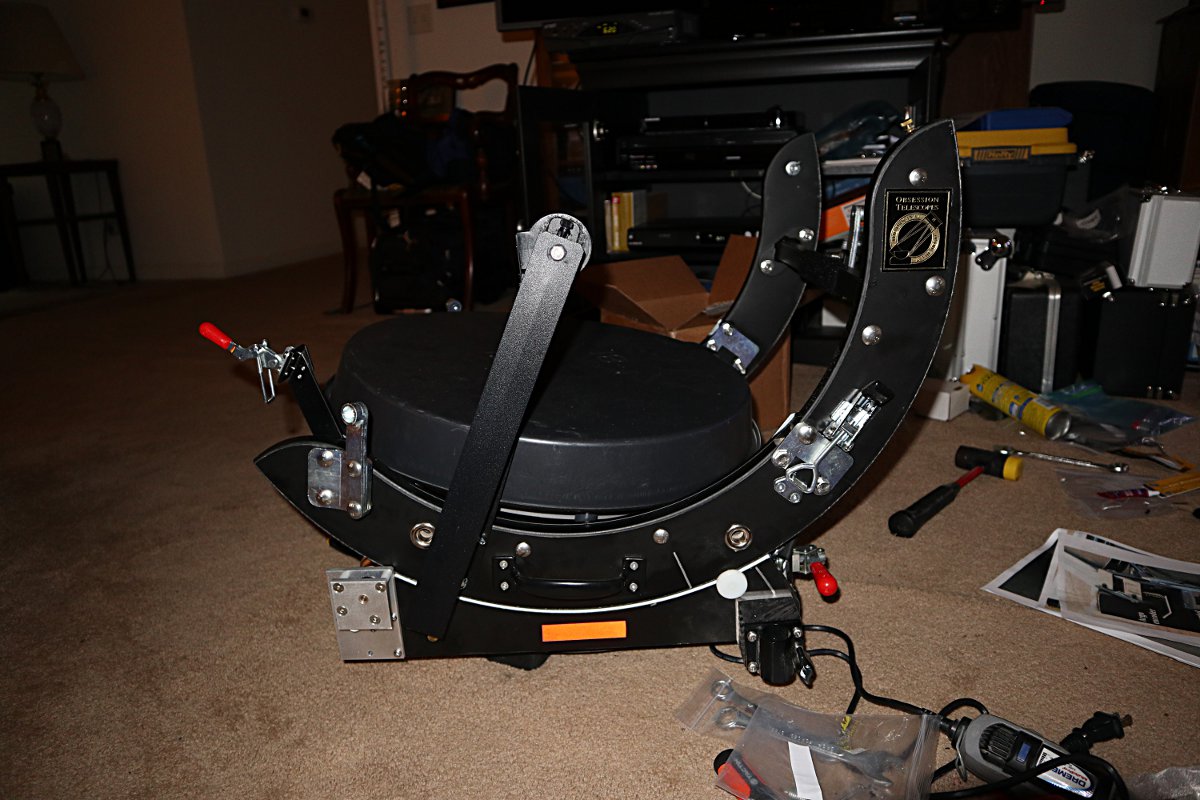

 | - | Altitude motor assembly and release lever attached to the rocker. |

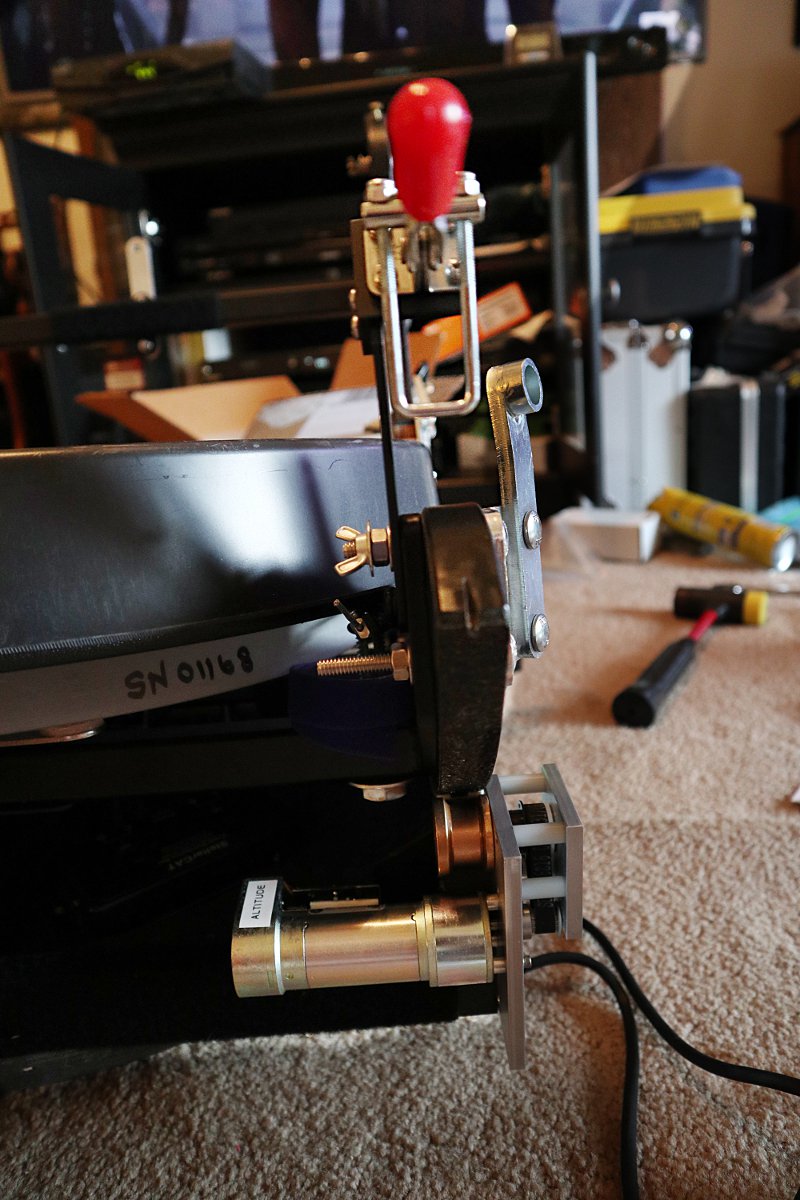

 | - | Close-up of altitude roller, release lever, and slot cut in altitude bearing for altitude cable. |
 | - | Hole for Altitude encoder bracket moved slightly to allow for altitude motor assembly. |

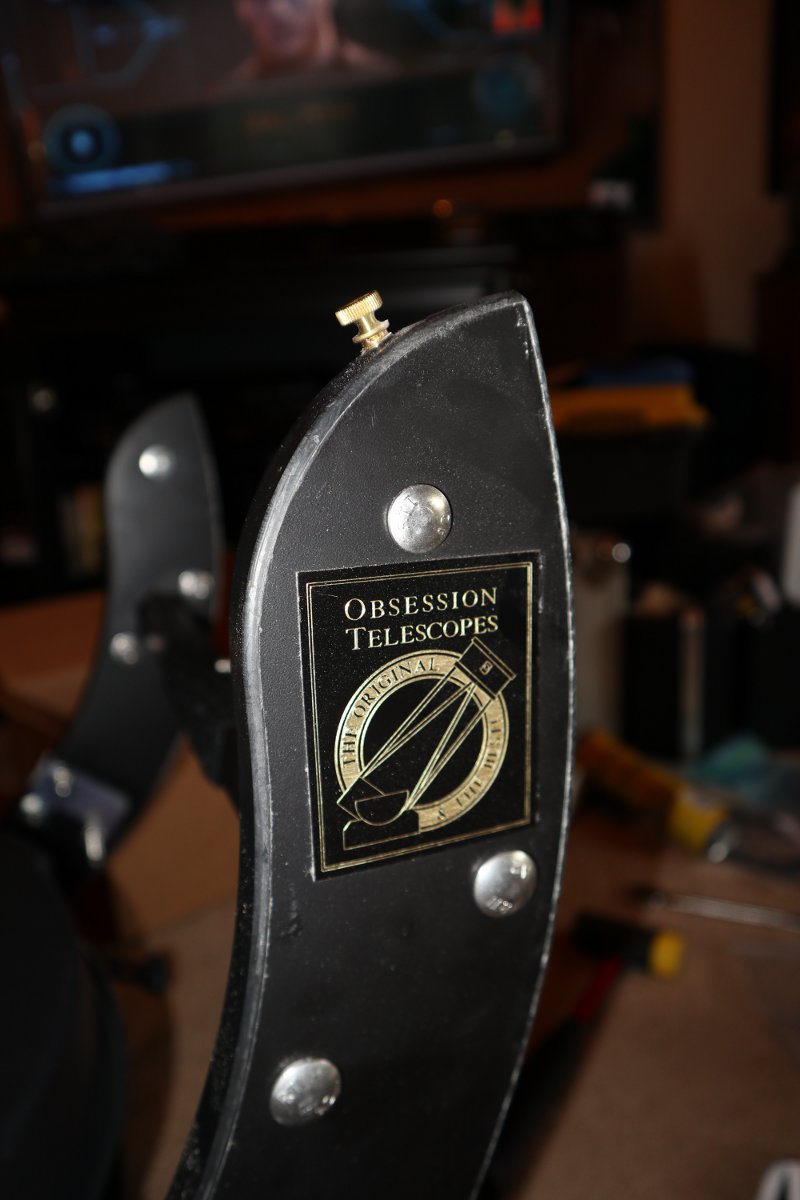

 | - | Knob installed in front altitude bearing for altitude cable. |

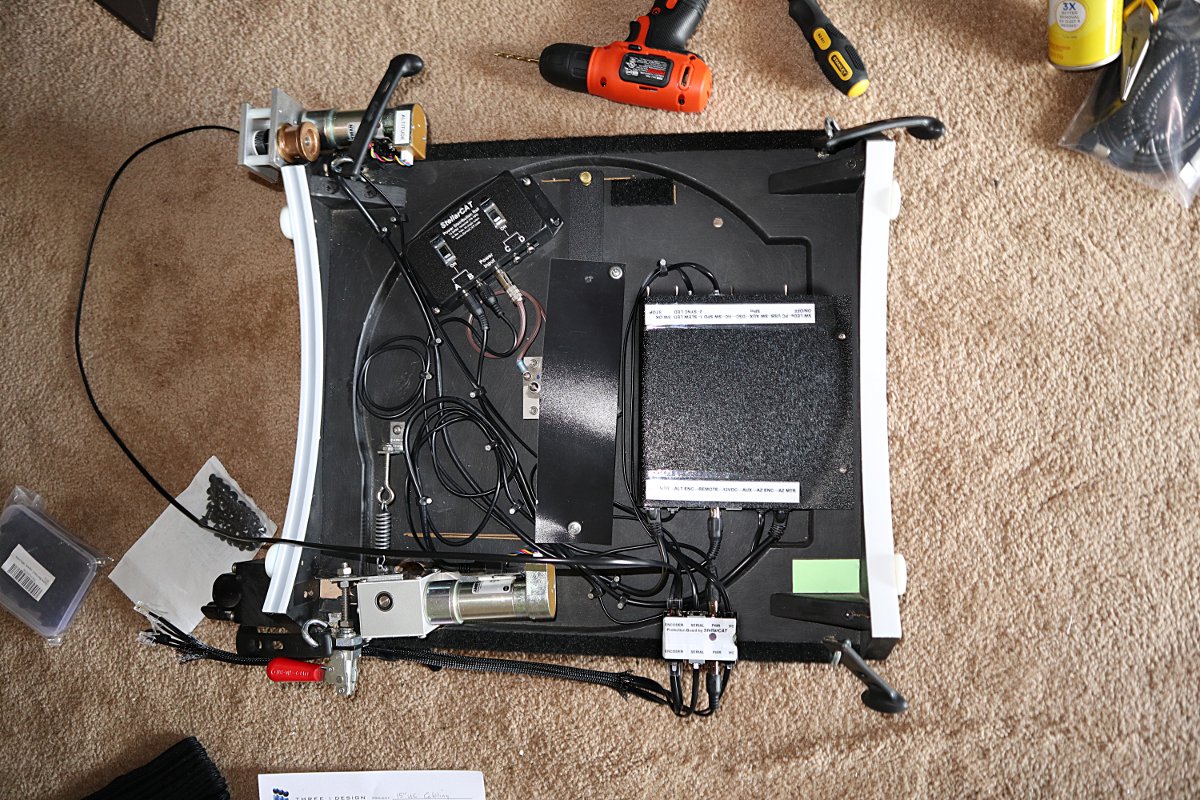

 | - | Cabling installed in the rocker. |

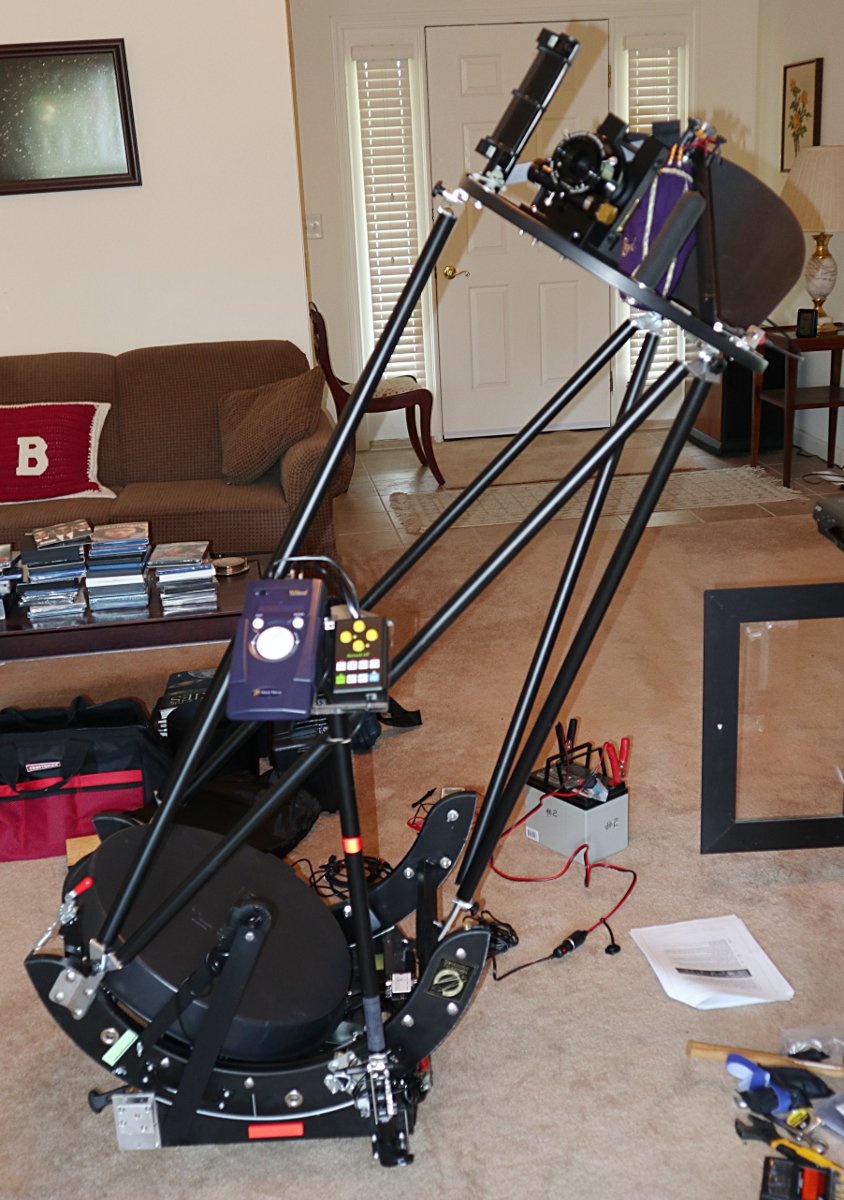

 | - | Completed scope. Note new hand controller next to the Argo Navis on the stalk. |
| Obsession 15UC Servocat Cabling Diagram. | ||
