Thermoelectric cooler for DMK41AU02.AS camera consisting of a Peltier chip from an old electric cooler, and pentium 4 CPU cooler. The camera was overheating and shutting down while solar observing when the ambient temperature was above 90 degrees F. The pentium 4 CPU cooler basically consists of a copper heat sink and a 12VDC fan that blows through the heat sink. The cold side of the peltier chip is against the camera housing. The hot side of the peltier chip is against the heat sink of the CPU cooler. Thermal compound helps conduct the heat or cold between the chip and the camera or heat sink.

Thermoelectric cooler for DMK41AU02.AS camera consisting of a Peltier chip from an old electric cooler, and pentium 4 CPU cooler. The camera was overheating and shutting down while solar observing when the ambient temperature was above 90 degrees F. The pentium 4 CPU cooler basically consists of a copper heat sink and a 12VDC fan that blows through the heat sink. The cold side of the peltier chip is against the camera housing. The hot side of the peltier chip is against the heat sink of the CPU cooler. Thermal compound helps conduct the heat or cold between the chip and the camera or heat sink.
Close up of the camera, peltier chip, CPU cooler, and the large bracket that holds it all together.

Close up of the camera, peltier chip, CPU cooler, and the large bracket that holds it all together.

$The camera and cooling assembly attached to my Televue 102iis refractor.$

The camera and cooling assembly attached to my Televue 102iis refractor.

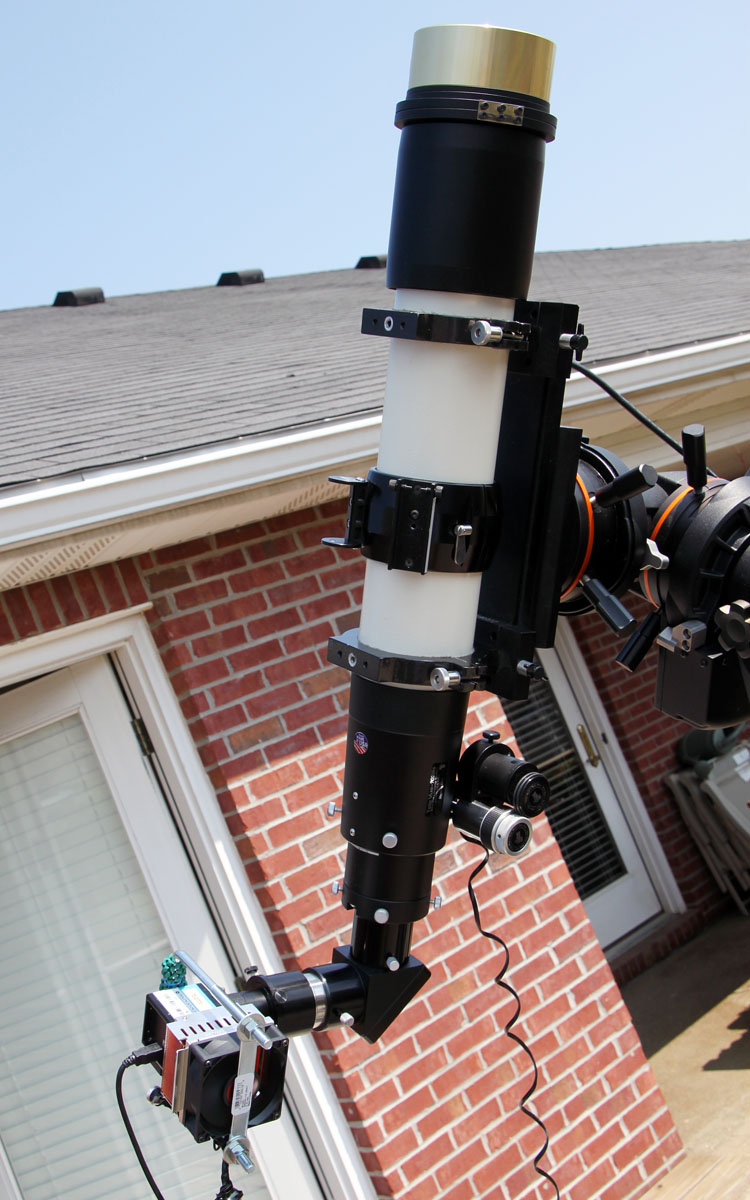

$A wider view of the camera and cooling assembly attached to my Televue 102iis refractor with Coronado SM90 h-alpha filter.$

A wider view of the camera and cooling assembly attached to my Televue 102iis refractor with Coronado SM90 h-alpha filter.

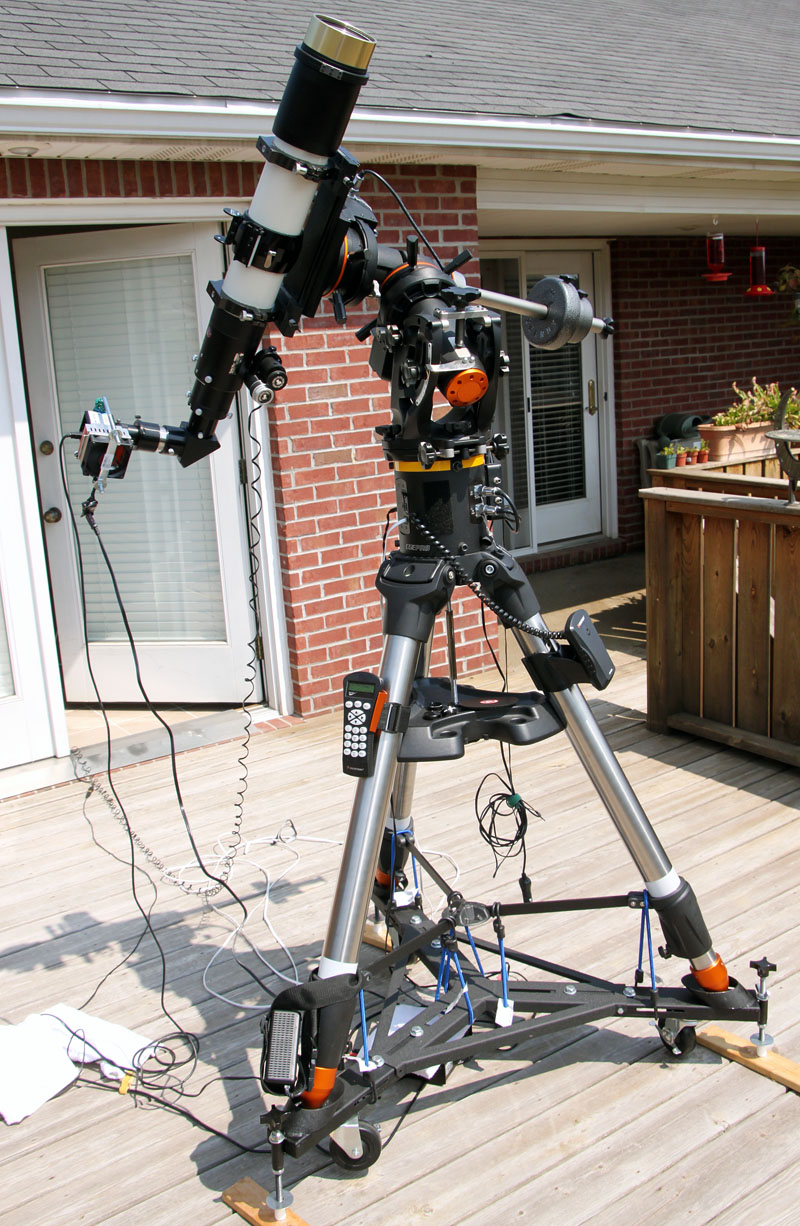

A view of the entire telescope.
